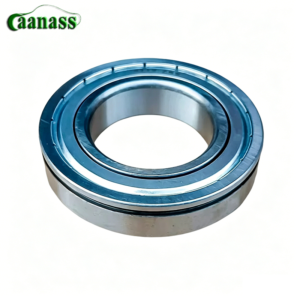

For heavy truck transmission repair shops and mechanical parts distributors, standard deep groove ball bearings are essential general maintenance components used across gearboxes, cooling fans, water pumps and auxiliary motors of Sinotruk HOWO vehicles. Low-quality ball bearings will generate loud humming vibration during operation, suffer premature ball wear, cage fracture and shaft jamming, which trigger secondary damage to matched shafts and housings. Our 6210-ZNB single shield deep groove ball bearing with outer snap ring groove adopts standard industrial dimensions, perfectly matching multiple rotating auxiliary assemblies on HOWO heavy trucks, and is widely stocked by global spare parts suppliers.
The 6210-ZNB bearing follows unified ISO standard size parameters: inner bore 50mm, outer diameter 90mm, width 20mm,The suffix Z means single metal dust shield on one side to block dust and mud; N stands for integrated snap ring groove on outer ring for quick axial positioning during installation, eliminating extra locking parts. This bearing can bear both radial load and bidirectional light axial load, suitable for medium-speed rotating working conditions. It is commonly installed on HOWO A7, T7H, TX and HOHAN truck gearbox auxiliary shafts, engine cooling fan motors, water pump spindles and air compressor drive ends. Many cheap generic bearings use low-carbon steel balls and thin stamped cages, which lose roundness rapidly under long-term chassis vibration, leading to early failure within short service cycles. Our 6210-ZNB is forged from high-carbon chromium bearing steel, all rolling elements go through precise grinding and overall quenching, ensuring stable rotation accuracy and strong load resistance.
All finished 6210-ZNB deep groove ball bearings are processed with strict dimensional tolerance control, consistent inner and outer ring roundness and smooth raceway surface. The pre-installed single-side metal dust shield locks internal grease inside the bearing cavity, preventing sand, mud and cooling water from entering during off-road transportation. The outer ring integrated snap ring groove realizes fast clamping positioning without custom gaskets or limit sleeves, cutting installation time for maintenance technicians greatly. Every batch passes high-speed rotation fatigue test and dynamic noise inspection before leaving factory, effectively avoiding abnormal vibration and early wear faults.
Three core practical strengths make our 6210-ZNB the mainstream choice for bulk buyers. First, universal standard size with ZNB snap ring and dust shield design, compatible with most medium-load rotating assemblies of HOWO heavy trucks, no modification required during replacement. Second, high-hardness steel structure reduces operation friction and running noise, lowering maintenance frequency of vehicle auxiliary systems for fleet owners. Third, we maintain year-round sufficient spot inventory of 6210-ZNB bearings, supporting single-piece orders for emergency repair and tiered discount large container wholesale for regional distributors, neutral export packaging can be customized for local market resale.
6210-ZNB deep groove ball bearing is suitable for medium radial load and low axial load rotating parts, not recommended for heavy impact high-torque main shaft applications. When replacing this bearing, clean the shaft journal and bearing housing to remove metal debris and old grease, and fill high-temperature lithium-based grease before assembly to extend service life. If you cannot confirm matching compatibility with your truck’s motor, pump or gearbox assembly, provide vehicle VIN or old bearing model code, our technical team will complete verification within 24 working hours.
Small bearings play an irreplaceable supporting role in truck auxiliary systems. Cutting costs by using inferior ball bearings often leads to motor burnout, pump leakage or gearbox abnormal wear, bringing expensive downtime losses. Our standard 6210-ZNB deep groove ball bearing meets industrial OEM assembly standards, providing stable and cost-effective general bearing solutions for global HOWO truck operators and repair garages.
For complete dimension drawings, real product photos and latest bulk wholesale price of 6210-ZNB deep groove ball bearing, please visit our dedicated product page:
Feel free to send inquiry to get full catalog of HOWO gearbox, motor and pump bearing series.
